XK-B874 14 Wheel angle packaging machine - coding and packaging

XK-B874Z (14 disc angle packaging machine)

(1) Technical characteristics

1. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output.

2. The intelligent temperature control system is adopted, and the temperature is stable and adjustable as required.

3. The length of the packaging bag can be adjusted, the total number of packages can be adjusted, and automatic alarm will be given when the set quantity is reached.

4. After packaging, the bag type is uniform, regular, beautiful and firm, and can also be equipped with extension equipment such as coding machine, weight inspection scale, labeling machine, elevator, etc.

(2) Scope of application and functional characteristics

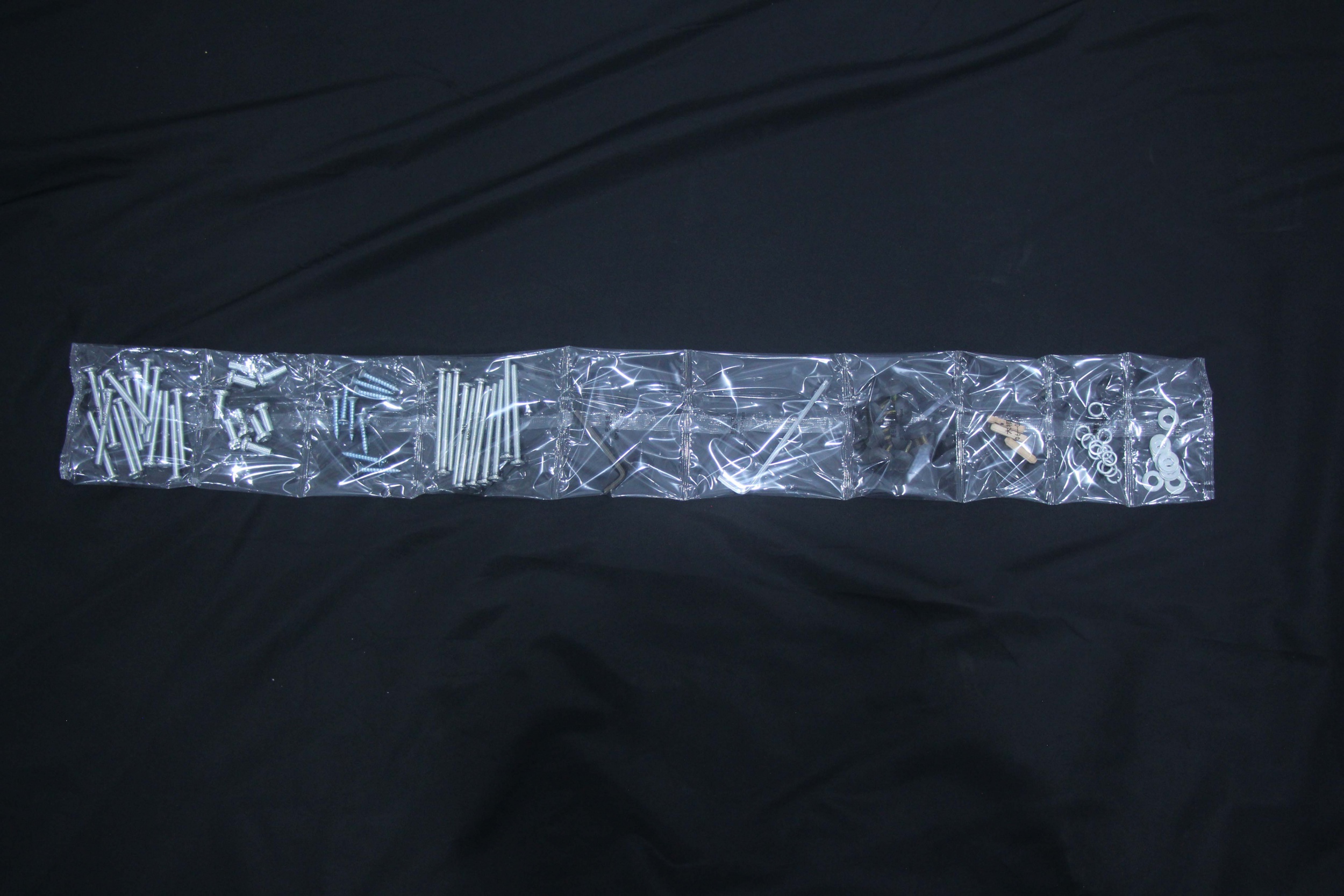

1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses chain bucket climbing to drive the material box to rotate, manually put the material into the material box, and the chain bucket will fill the product into the molding machine for automatic packaging. This product uses the climbing method to reduce the height of the mop. After the mop, more than 14 vibration disk stations can be added, It can continue to mix more specifications of materials for automatic packaging, and can also use free space for manual feeding.

2. It is applicable to "OPP/CPP/composite film" as sealing material.

(3) Performance parameters

Equipment model: B874Z

Counting method: optical fiber counting/blocking and discharging

Bag size: width 40-140, length within 200 (conventional 140)

Packaging speed: 1-60 bags/minute

Sealing shape: stripe, back seal/three-side seal (back seal in general)

Voltage power: 220V/50HZ P ≈ 3KW

Air source requirement: 0.4-0.8MPA

Bag opening shape: pattern knife tooth shape

MM/W 1700MM/H 1470MM

Weight: about 1000KG
