XK-B8610T Ten-disc corner drum film packaging machine

XK-B8610T (ten-disk drum film packaging machine)

1) Technical characteristics

1. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output.

2. The bag is made by using the cylinder film, without the need of molding machine.

3. Fault self-diagnosis and alarm display.

4. Man-machine interface operation, simple and convenient parameter setting.

5. Use heating wire to control temperature and seal, and pneumatic suction bag to pull the bag.

6. The transmission system is simple, reliable and convenient for maintenance.

7. The width of the bag can be changed at any time, just by changing the drum film.

8. Object sensing to prevent empty bag.

9. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output.

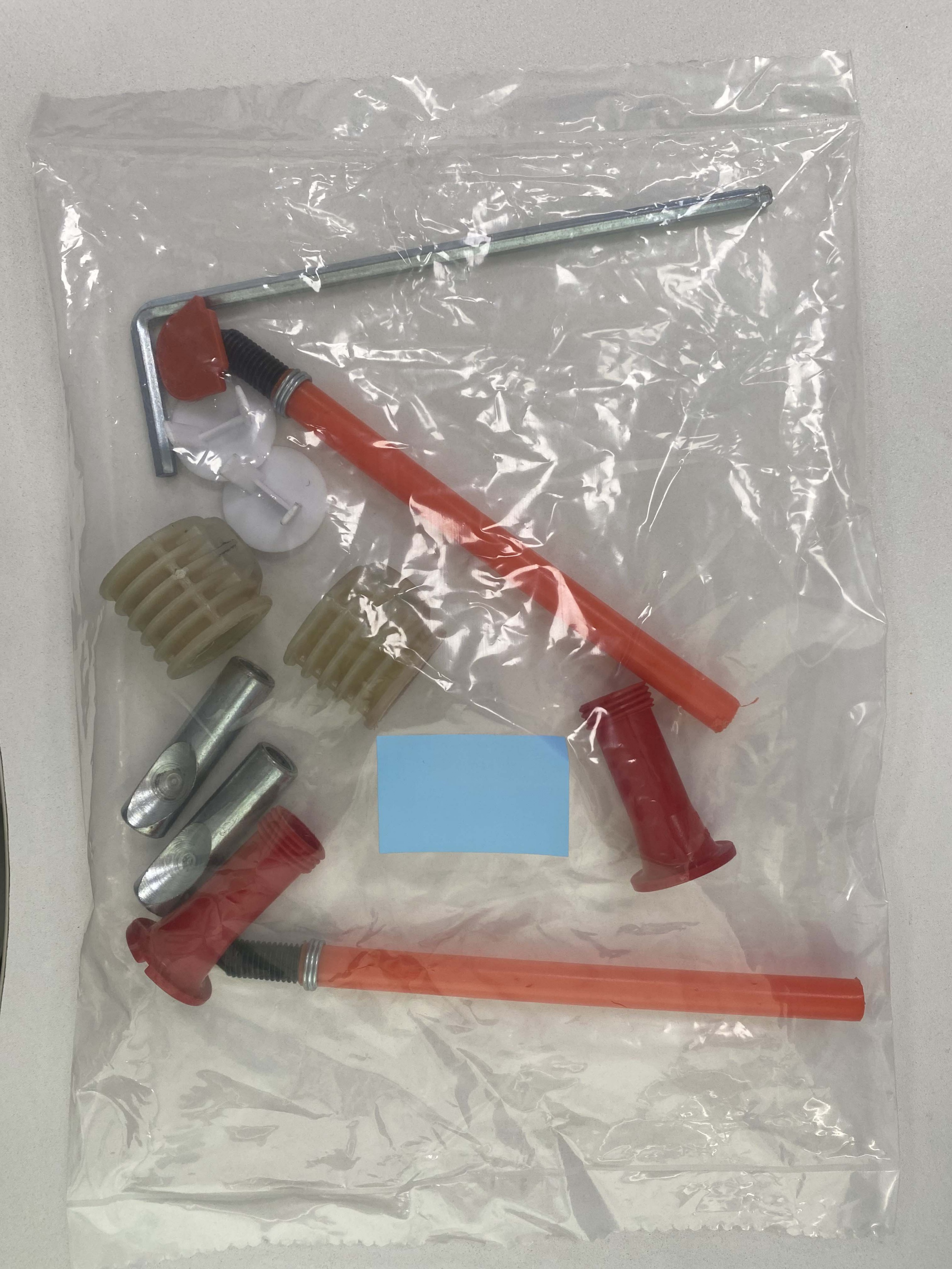

10. After packaging, the bag type is uniform, regular, beautiful and firm, and can also be equipped with extension equipment such as coding machine, weight inspection scale, labeling machine, elevator, etc.

2) Scope of application and functional characteristics

1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. The chain bucket climbing type is used to drive the material box to rotate, and the material is manually put into the material box. The slope climbing method is used to reduce the height of the mop. More than 10 vibrating disk stations can be added behind the mop, which can continue the automatic packaging of more specifications of materials, Free space can also be used for manual feeding. This product is applicable to the products with large quantities and large materials, which require the bag making material PE material and the upper and lower sealing cylinder film packaging. For example, rubber particles, injection molding parts, springs, capacitors, plastic standard parts, water pipes, power lines, etc. This product has a large bag size and a large opening. It does not need to be cut by the molding machine. It can be used for filling and packaging of products with large size and quantity.

2. It is applicable to "PE barrel film" as sealing material.

3) Performance parameters

Equipment model: B8610T

Counting method: optical fiber counting/blocking and discharging

Bag size: width 100-400, length within 450

Packaging speed: 5-15 bags/minute

Sealing shape: upper and lower cylinder membrane sealing

Voltage power: 380V/50Hz P ≈ 4.0KW

Weight: about 2060KG

Bag mouth shape: pattern knife tooth shape

Overall dimension: 7940mm long/4450mm wide/1900mm high
